| Inteflex has been an
authorised Prisma Supplier and manufacturer for over two years . In that
time we have supplied high quality products to various sectors of
industry.
Prisma Plus,
is the new Merlin Gerin low voltage distribution switchboard designed to be
fully integrated with Schneider Electric distribution, control and
automation products. It
offers a wide range of solutions from the simplest through to the most
sophisticated required in the production of switchboards up to 3200A. This
comprehensive offer covers all electrical distribution and building utility
control requirements for commercial and industrial applications.
Prisma Plus switchboards are fully tested to
comply with BSEN60439-1 and the offer includes both wall mounted and floor
standing options from IP30 to IP55. The Prisma Plus range incorporates fault
levels up to 85kA for one second and form ratings up to 4b type 6. The new
switchboard design offers savings in both build time and space which gives
the benefits of quicker delivery and smaller switchrooms.
Prisma Plus is a system capable of meeting your
needs for distribution up to 3200A. The modular design can also be
used to house more complex control components such as smart relays and
programmable logic controllers.

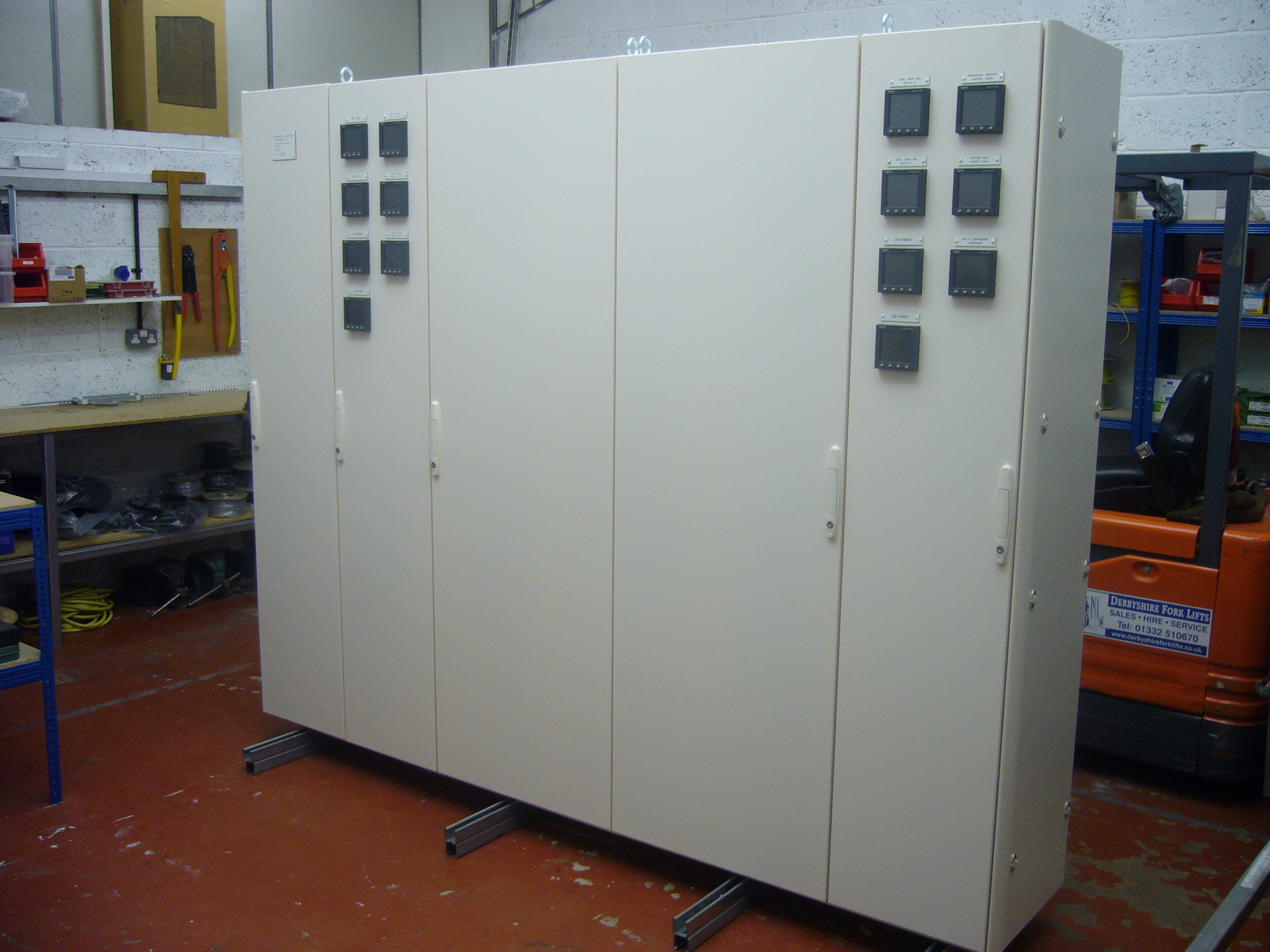

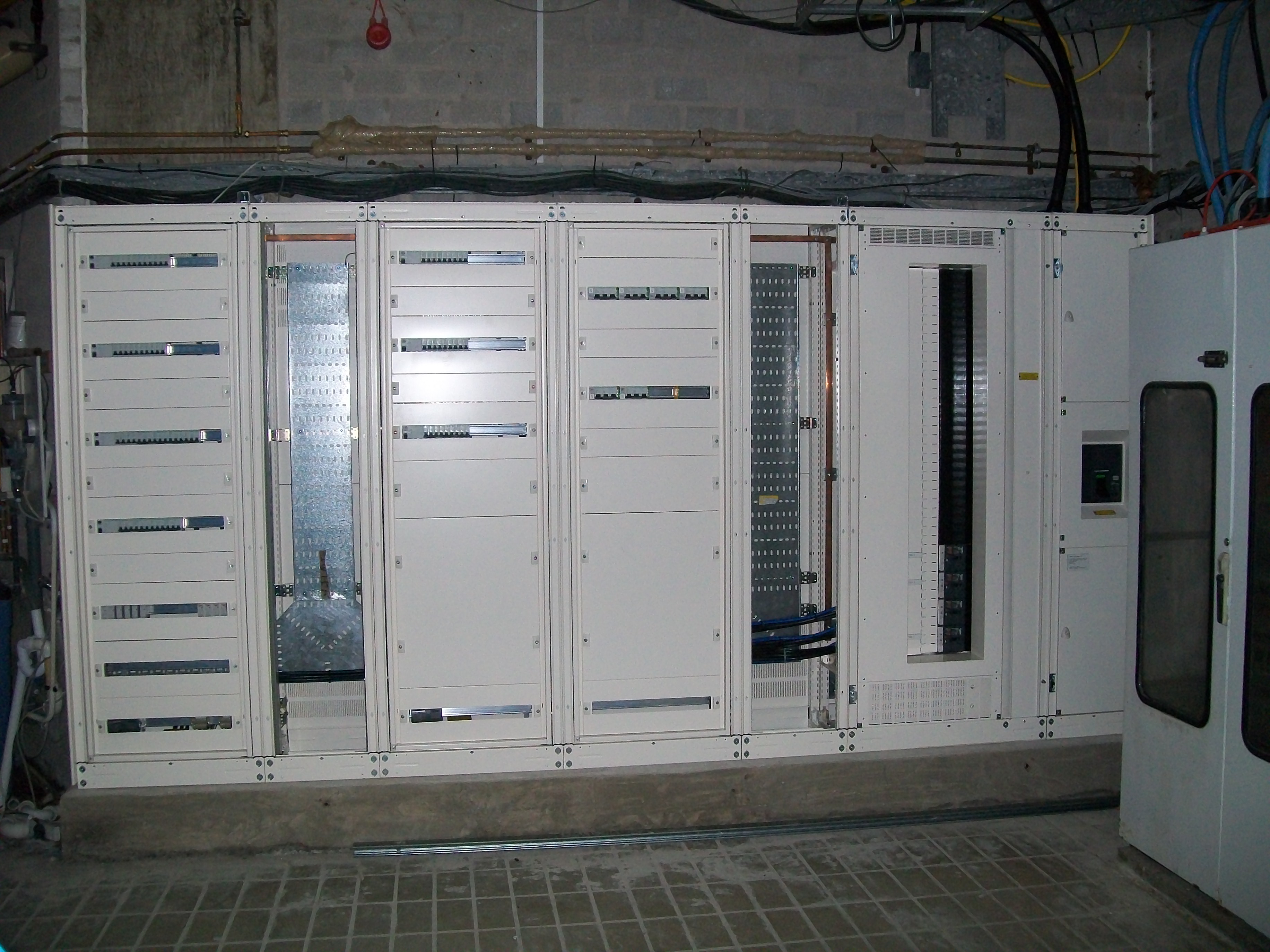

Below is three examples of panels we
have designed and manufactured. |
